Kevlar range

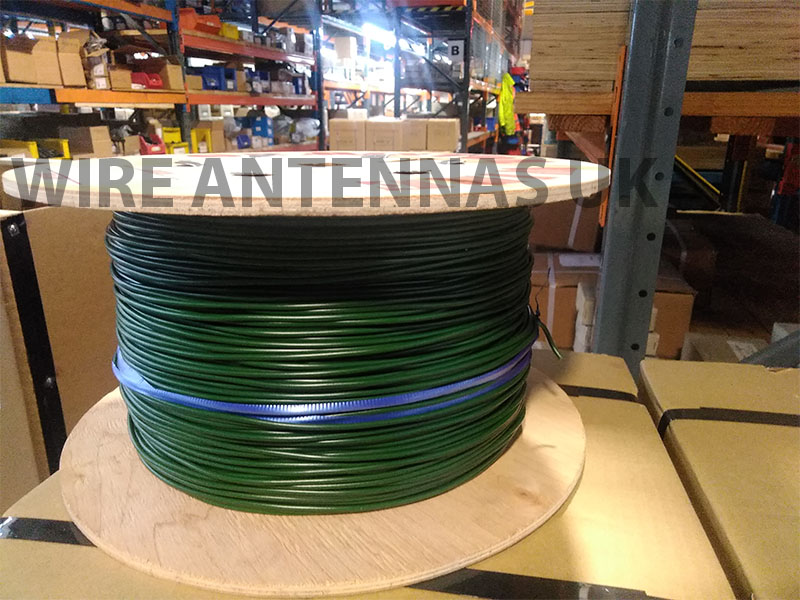

Wire Antennas Military style Kevlar 2.8mm standard size antenna wire in Chrome Green finish replacement elements to complement most of our antenna range
Simply the best type of wire to use for all of your antenna projects. This Kevlar wire is light and amazingly strong, and finished in a chrome green colour for minimum visual impact !
We can send you replacement elements for your current antenna all you need to do is contact us with your antenna type and we will send you complete made up elements : contact us
Specifications:
- Strength Member (Centre Element): Yellow
- Continuous Filament Aramid (Kevlar). Diameter: 1.00mm Nominal
- Conductor: Silver (16/4/0.1mm conductor)
- Tinned Copper Wire Braid. Diameter: 1.40mm (±0.20mm)
- Jacket: Green
- PVC Type 4. Diameter: 2.80mm (±0.10mm)
- Power handling in excess of 2 kW RF
- Max DC Resistance: 40 Ohms/1000m
- Minimum Insulation Resistance: >500 MOhms/1000m @ 500V
- Min Break Load: 90 KGF
- Min Break Force: 0.8826 KN
- Max Operating Temp: 100ºC
- Min Cold Bend Temp: -60ºC
- Min Cold Flex Temp: -40ºC
- Max Elongation @ 20ºC: 2% @ 660 N
- Min Recommended Bend Radius: 5.4mm
- Nominal Weight in Air: 13.50kg/KM (1.35kg/100M)
