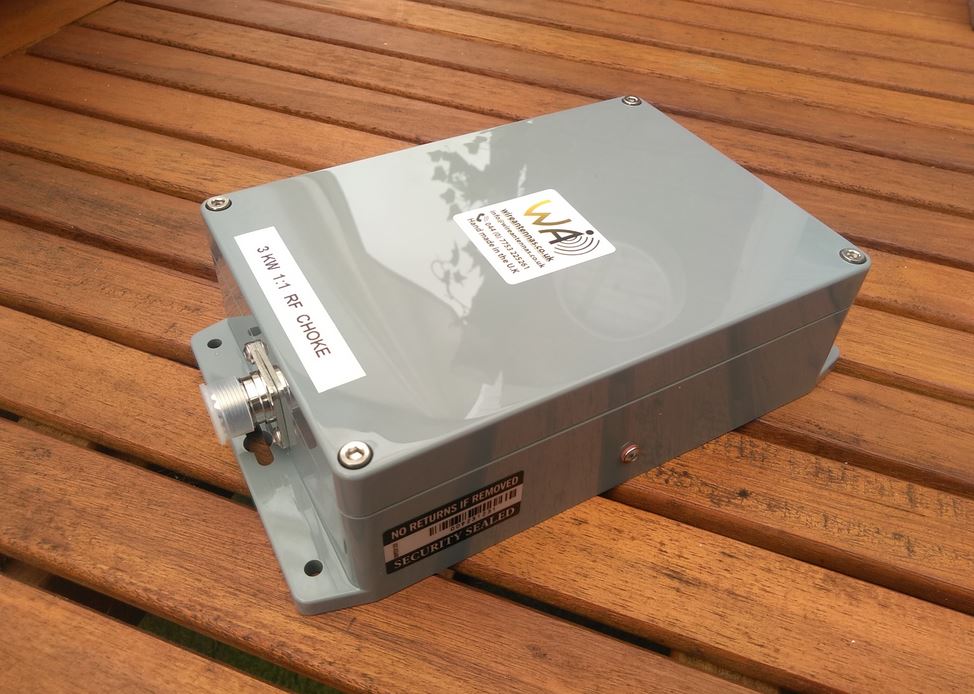

1:1 CURRENT BALUN 3 KW

To choke off common mode currents 3KW heavy duty cycle watts

Technical specification :

Type :                                               1:1 Current Balun

Frequency :                                      1 – 30 Mhz

Input Impedance:                             50Ω

Output Impedance:                          50Ω

Minimum Choking Impedance:        1.5KΩ @ 1.8MHz

Maximum Choking Impedance:       +10kΩ @ 20~60MHz

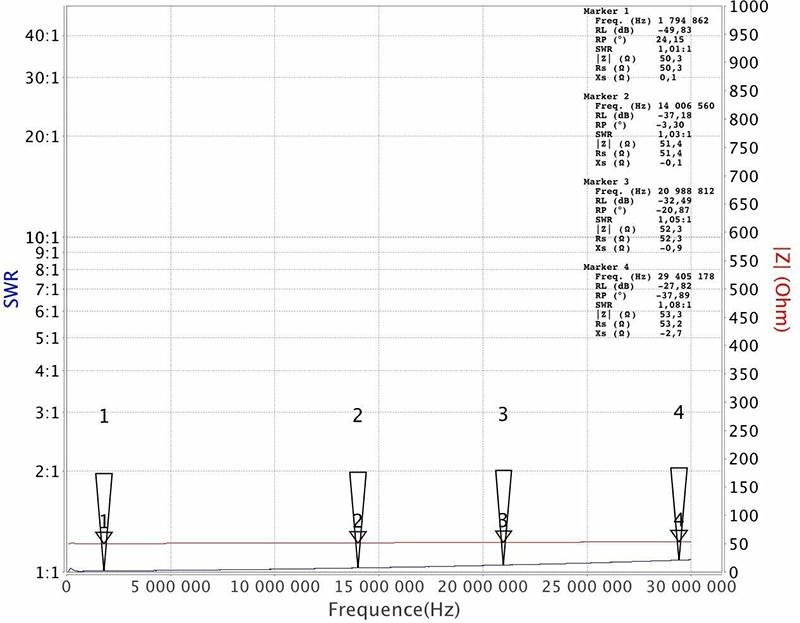

Typical insertion loss:                       less than 0.05 dB

Power Handling(CW/SSB) :             3 KW

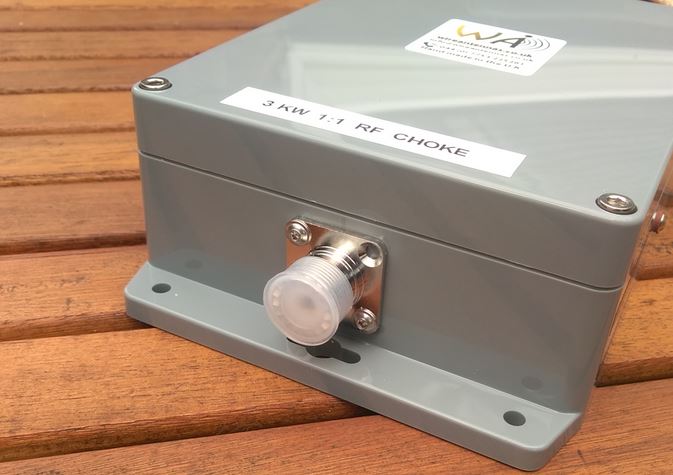

SO239  / for N type please include comment at check out

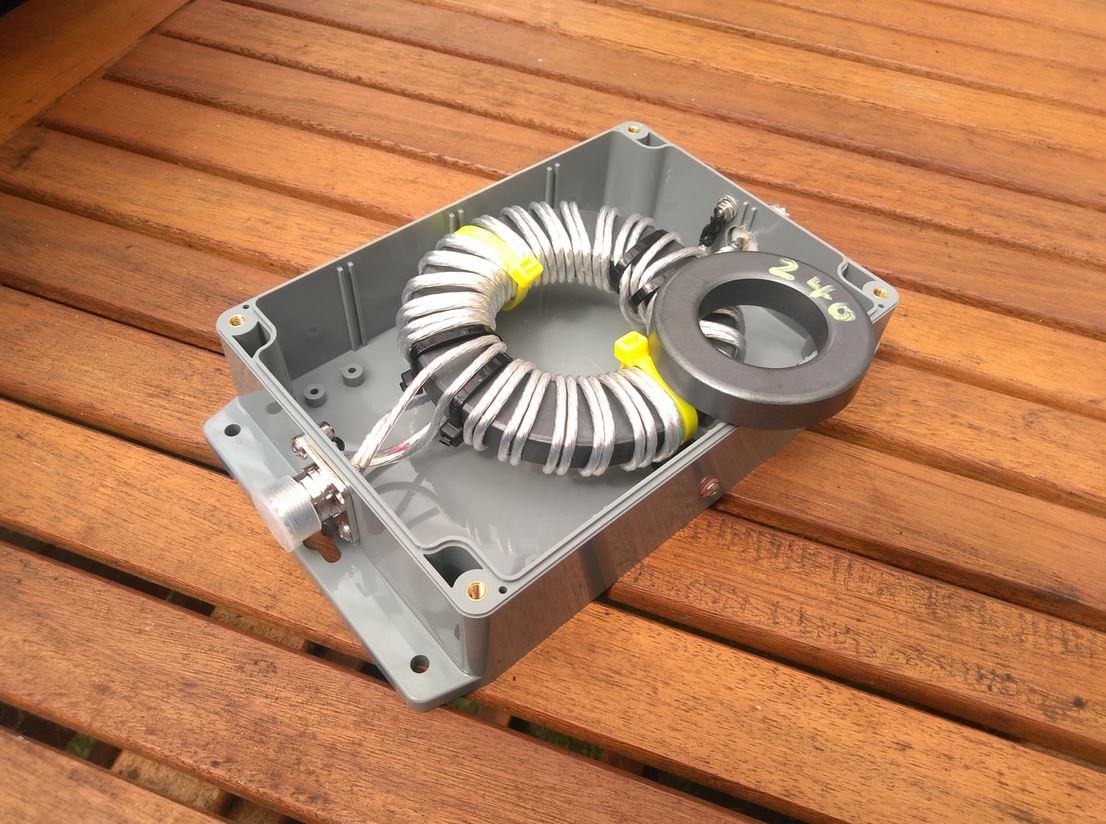

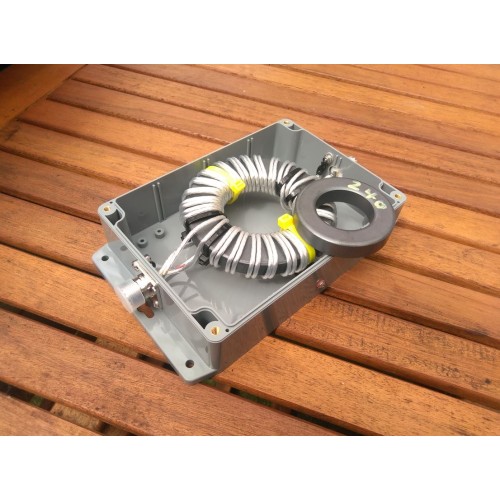

Large core

SILVER PLATED WIRE in a PTFE see through jacket
