  • 9:1 impedance transformer UNUN 10 Watts

9:1 impedance transformer UNUN 10 Watts

  • Brand: Wire Antennas UK
  • Product Code: QRP 9:1-impedance-transformer-UNUN 10 WATTS
  • Availability: 9

  • £30.00

  • Ex Tax: £30.00

0 reviews / Write a review

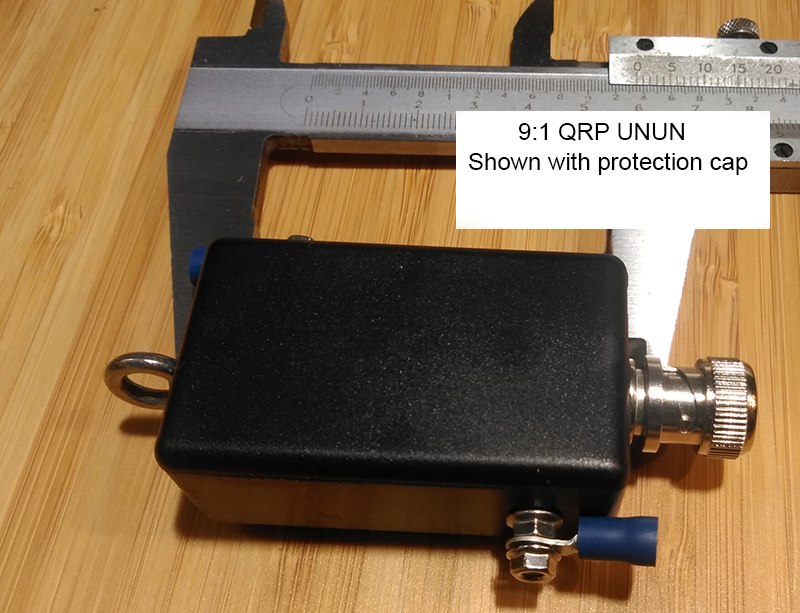

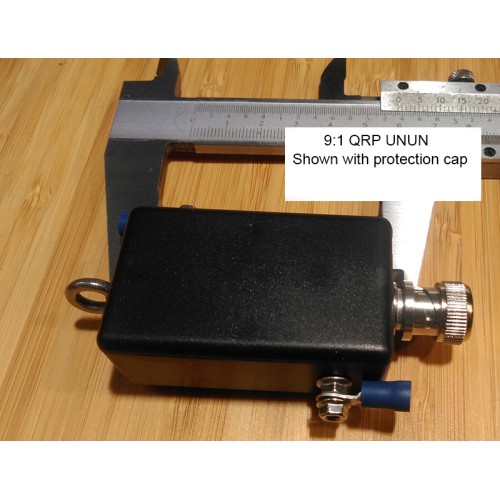

9:1 impedance transformer UNUN 10 Watts



An impedance transformer (9:1) to feed a high impedance, end fed half wave wire which is likely to be a few hundred ohms, and transform it into something closer to a 50Ω (unbalanced) coaxial input. 10 watts

This is a unun ( unbalanced to unbalanced ) transmission line transformer designed to match 450Ω  to 50Ω .

It has a constant impedance transformation ratio of 9:1 from 1.81 MHz to 30MHz.








Technical specification :

Type :                                              9:1 Unun
Frequency :                                    1.81 MHz – 30MHz
Impedance ratio:                             9:1
Input Impedance:                             50Ω
Output Impedance:                         450Ω
Power Handling(CW/SSB) :            10W

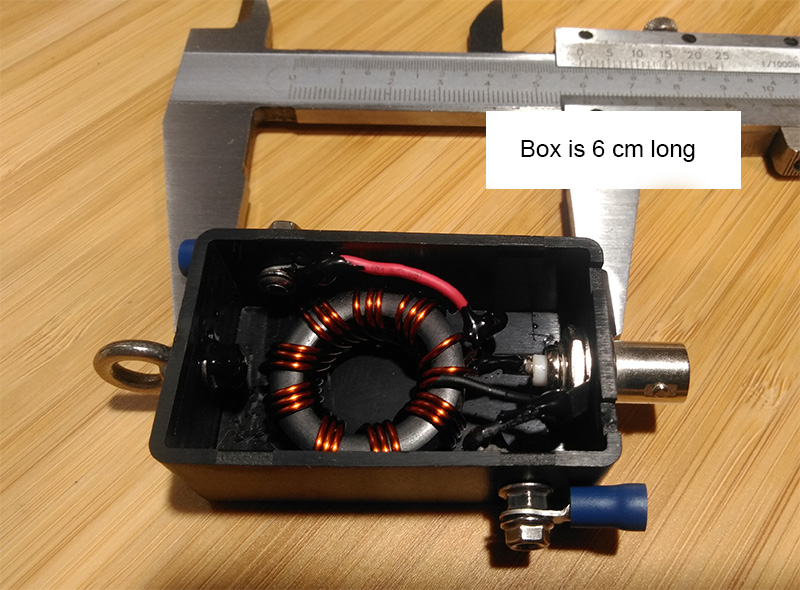

Core Type :                                      FT110-43 by Fair-rite® Co.

Assembled and tested.



This is an unun ( unbalanced to unbalanced ) transmission line transformer designed to match 450Ω  to 50Ω .
It has a constant impedance transformation ratio of 9:1 from 3.5MHz to 30MHz.







UNUN  9:1  Type 43 core material giving extremely flat bandwidth.
Low Insertion Loss and exceptional match across all HF bands.
Stainless steel hardware.
Wire is Class H 212 Deg Celsius double coat enamel.
Sealed weather box  Usable Frequency Range 80m to 10m.
High Quality means paying for what you get  Cheap = very inefficient = very hot.
Would you connect anything less to your expensive radio equipment.

We offer good product customer support.





For QRP Kevlar wire click here
