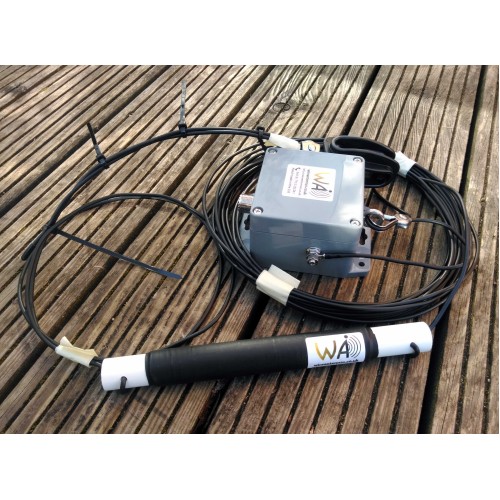

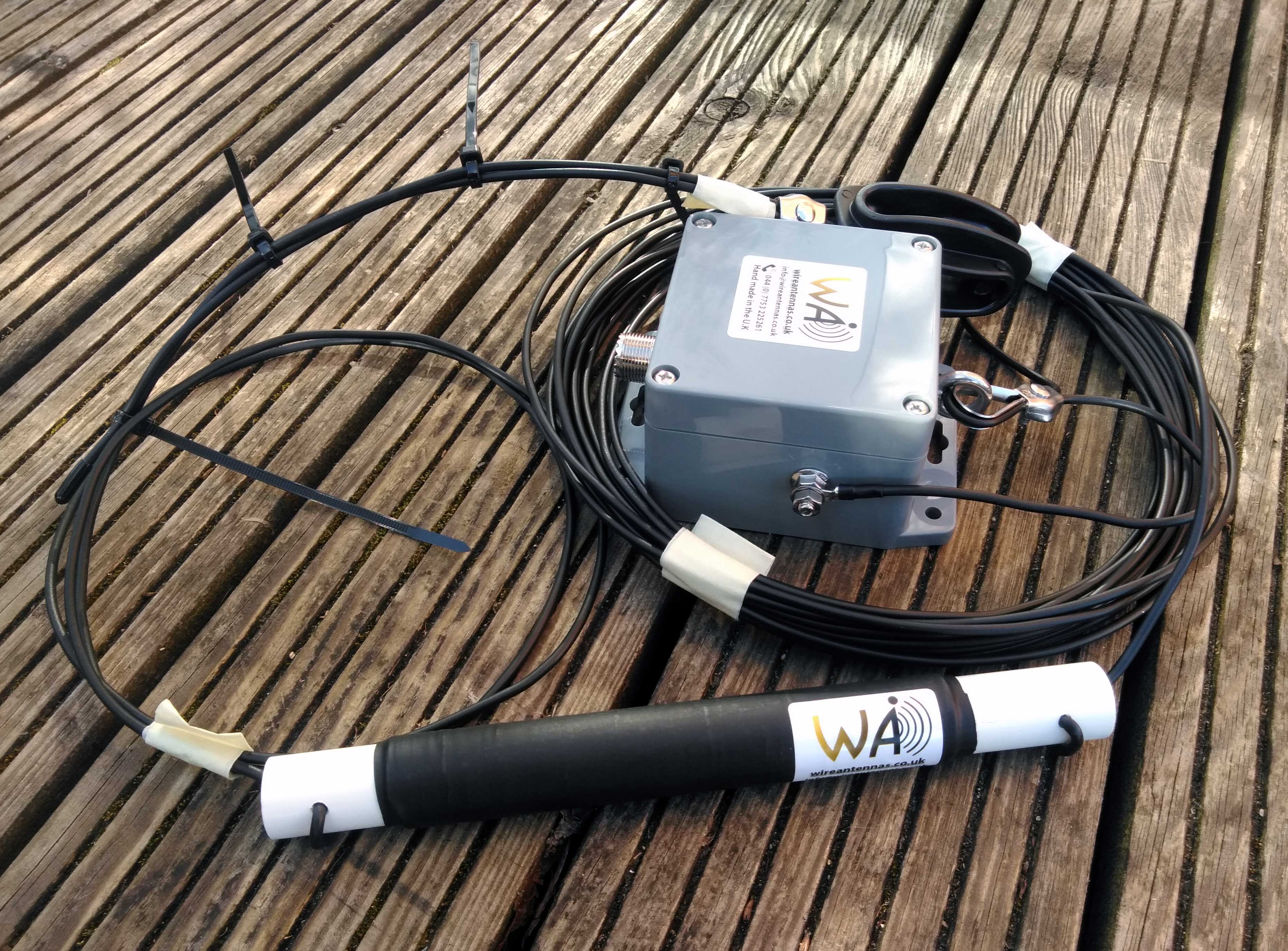

  • EFHW  49:1unun  40 / 20 / 10 m 150W Short with coil.

EFHW 49:1unun 40 / 20 / 10 m 150W Short with coil.

  • Brand: Wire Antennas UK
  • Product Code: EFHW 49:1unun 40 / 20 / 10 m 150W Short with coil
  • Availability: 8


  • £65.00

  • Ex Tax: £65.00



This is an End Fed Short Wire wire antenna that will cover all bands from 40 / 20  and 10 meters.

It utilizes a 49:1 UNUN transformer in order to bring the impedance of the antenna to more manageable values of 50 Ohms for your antenna transmitter / tuner.

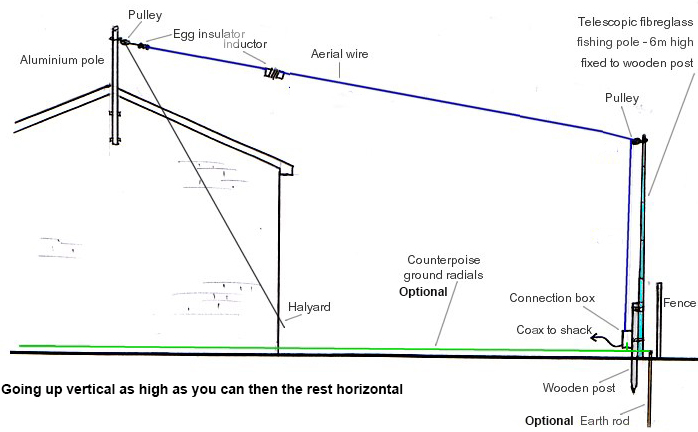

It is a great antenna for HAM radio operators living in HOA controlled housing, hams desiring a very stealthy RV antenna, Field Day operations, sailboats, portable operating, attic and backyard installations.

Including:

1 X 49:1 150 unun Type 43 core giving extremely flat bandwidth

All stainless steel fittings

1 x heavy duty insulator

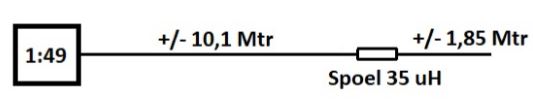

33 feet / 10 meters wire

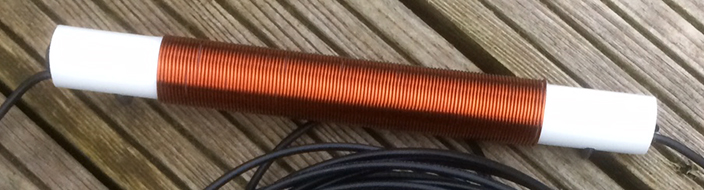

1 coil 35 Micro Henry's a tuning stub 2 meters long ( to tune in 40 meters )

Test shown the results of :

40 meter band  07.100 Mhz

20 meter band 14.150 Mhz

10 meter band 28.500 Mhz







Below :  UNUN Coverage
